Skip to Content
Thank you for information, we will get back to you as soon as possible.
Please complete the recaptcha verification.
Failure in product call for price.
Unique Selling Points
Flatpack to Deltarack
All of our racks are delivered as a flat-pack kit. This allows us to ship worldwide while keeping shipping costs low. In less than ten minutes, your rack is fully assembled and ready to use.
Strappings
All of our uprights are equipped with convenient cutouts that make it easy to safely strap down your items.
Click here to download the manual.
Specifications
Increases the stability and rigidity of an unloaded rack. Does not affect the load capacity or integrity of the rack.
5

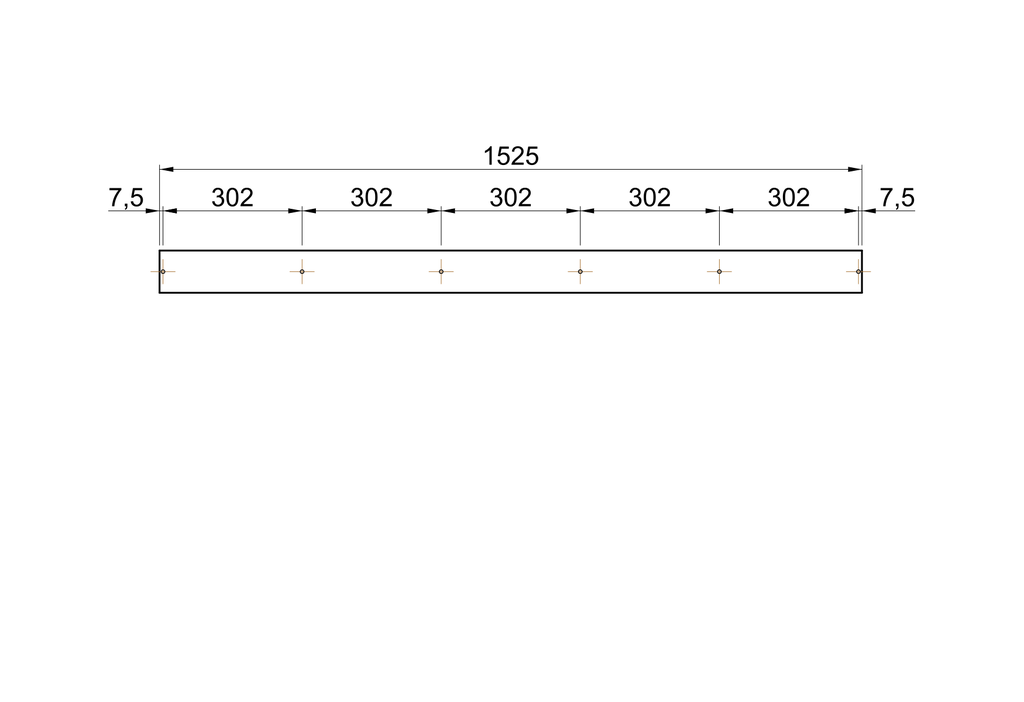

Each additional upright increases the load capacity by 250kg. Reduce the distance between the uprights for transporting small items.
6 Uprights
Dimensions
74 cm
152 cm
Cargo
100 cm
129 cm
Wheels
Wheel Combination
2x Swivel Break, 2x Fixed
4x Swivel Break
125 mm = 200 kg/wheel with a maximum of 600 kg per A-frame Cart 160 mm = 350 kg/wheel with a maximum of 1050 kg per A-frame Cart
125 mm
Specifications for
A-Frame Cart - TG74.150
Specifications
Use Case
5
# Uprights
6 Uprights

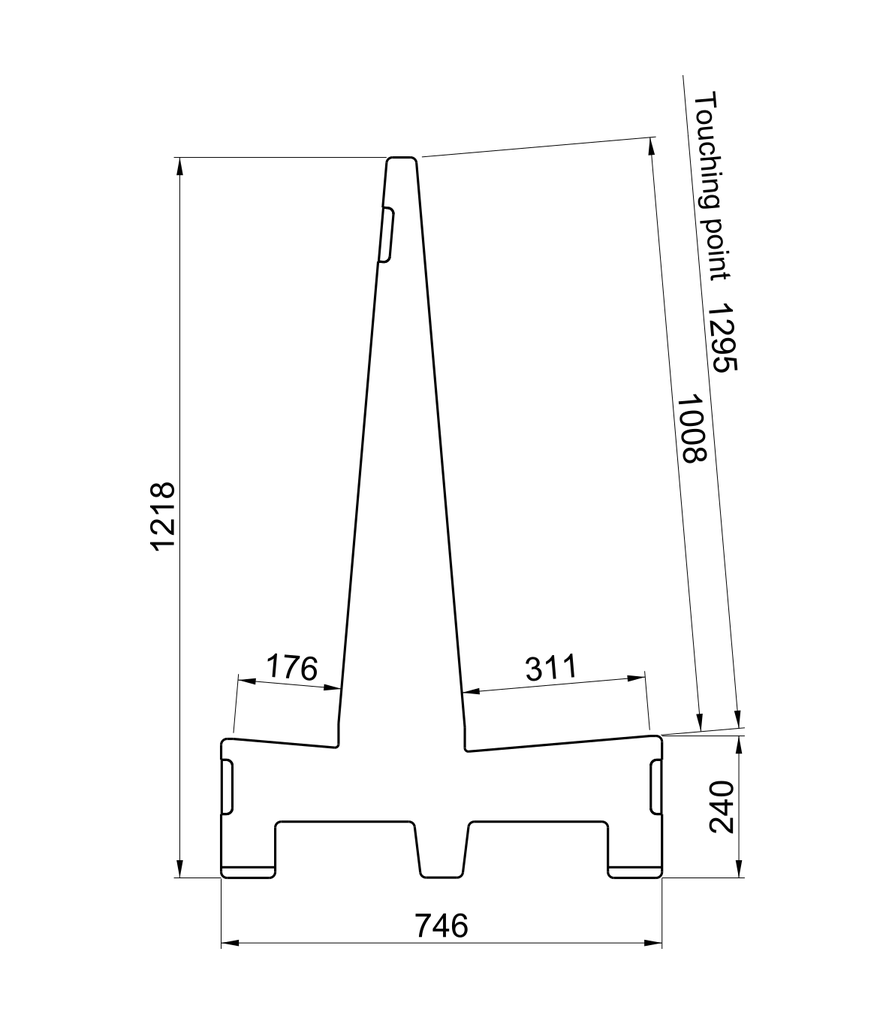

Dimensions
Rack Width
74 cm
Rack Length
152 cm
Cargo
Max Supported height
100 cm
Max. touching height
129 cm
Wheels
Wheel Combination
2x Swivel Break, 2x Fixed
or
4x Swivel Break
Wheel Diameter
125 mm
Uncategorized
Max Height supported
101 cm (SG)
