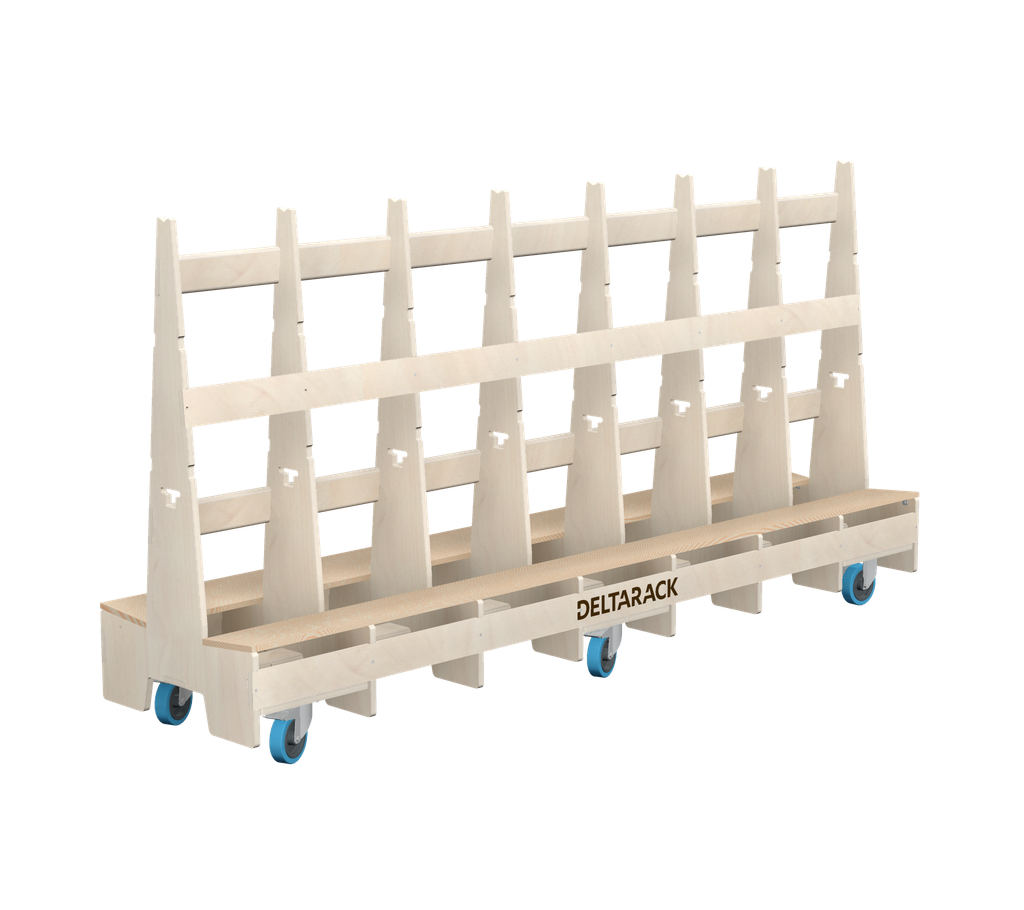

Slab Cart TG60.250

Slab Cart, 60 cm Base, 254 cm Length, 122 cm Height with 125mm wheels. Ideal for transporting sheet material, stone, tiles, glass, windows and doors, ... up to a maximum of 600 kg.

466.27 € 466.27 €

  • Use Case
    • Increases the stability and rigidity of an unloaded rack.
    • Does not affect the load capacity or integrity of the rack.
    More information about Use Case
    X
  • # Uprights
    • Each additional upright increases the load capacity by 250kg.
    • Reduce the distance between the uprights for transporting small items.
    More information about # Uprights
    X
  • Baseboard
    • Specifically designed baseboard, covered with felt.
    • For maximum protection of your fragile pieces.


  • Rack Width


  • Rack Length


  • Max Supported height


  • Max. touching height


  • Wheel Combination


  • Wheel Diameter
    • 125 mm = 200 kg/wheel with a maximum of 600 kg per A-frame Cart
    • 160 mm = 350 kg/wheel with a maximum of 1050 kg per A-frame Cart
  • Max Height supported


  • Extra Central wheels
    • Increases max recommended load capacity from 600 to 1000 kg for 125mm wheels
    • Increases max recommended load capacity from 1050 to 1500 kg for 160mm wheels
    • Extra central support


Compatible with a wheelboard Not compatible with a wheelboard
Add to cart Request a quote
Add to wishlist
Quantity 3 12 24 36 +48
Discount - 10 % - 15 % - 20 % - 25 % Request a personal quote
Terms and Conditions
Shipping: 5-10 Business Days
Contact Us
Use Case: 6
# Uprights: 8 Uprights
Rack Width: 60 cm
Rack Length: 254 cm
Max Supported height: 101 cm
Max. touching height: 129 cm
Wheel Combination: 2x Swivel Break, 2x Fixed
Wheel Diameter: 125 mm
Max Height supported: 101 cm (SG)

Unique Selling Points

Flatpack to Deltarack

All of our racks are delivered as a flat-pack kit. This allows us to ship worldwide while keeping shipping costs low. In less than ten minutes, your rack is fully assembled and ready to use.

Strappings

All of our uprights are equipped with convenient cutouts that make it easy to safely strap down your items.

Click here to download the manual.

Wheel board

With a wheel board, you can easily turn your rack into a cart. The wheel board easily clicks onto the rack, allowing you to quickly attach and detach the wheels on any rack. This is extremely useful for transporting your items. If desired, you can also permanently fix the wheels to your rack.

Deltarack
X

Custom logo

Want to use your rack as a life-size business card? Have it branded with your company name or logo.

Specifications

Specifications
Weight Weightkg
  • No Baseboard
  • Baseboard
6
8 Uprights
Dimensions
60 cm
254 cm
Cargo
101 cm
129 cm
Wheels
Wheel Combination 2x Swivel Break, 2x Fixed
125 mm

Specifications for Slab Cart TG60.250

Specifications
Baseboard No Baseboard or Baseboard
Use Case 6
# Uprights 8 Uprights
Dimensions
Rack Width 60 cm
Rack Length 254 cm
Cargo
Max Supported height 101 cm
Max. touching height 129 cm
Wheels
Wheel Combination 2x Swivel Break, 2x Fixed
Wheel Diameter 125 mm
Uncategorized
Extra Central wheels No or 2 x Swivel Break
Max Height supported 101 cm (SG)
TG60 Rack assembly.pdf
Wheelboards Assembly Guide.pdf
